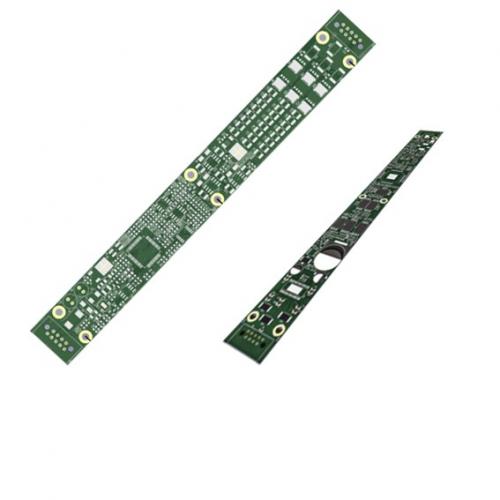

High Temperature Rotary Pulser Motor Driver

High Temperature Rotary Pulser Motor Driver

Item No: CEDM-T150-VHN-DC28V

Motor control for Micro electronic control hydraulic power system of intelligent downhole tool

Operation temperature (°C) : -40~150 (Heat class optional)
Operation humidity (percent) : 5~85
Motor interface type : BLDC
Service life (Hrs) : 1000
Motor control strategy : Six - step commutation control with sensor and sensorless
Rated voltage (VDC) : 28
Motor feedback : Hall sensor, EMF
Max. Transient voltage (VDC) : 35
Communication : RS485、CAN
Heat class optional (Arms) : 3
Ambient temperature detection: Inner sensor
Short circuit trip current (Arms) : 8
Motor state detection : Digital signal output with serial port
Short circuit trip current (KHz) : 16
Dimension (mm) : 23mmx200mm

Inquiry Now

Detailed Description

Inquiry Now

Core Advantages

1. Wide - temperature Operation
Both products can operate within a temperature range of - 40°C to 150°C, with some parameters selectable. This temperature - resistant capacity far exceeds that of conventional products.
2. High Reliability
They have a service life of up to 1000 hours and are equipped with multiple safety mechanisms such as short - circuit protection (short - circuit trip current: 8 Arms, 16KHz) and ambient temperature detection (with built - in sensors).
3. Flexible Control
They support various motor control strategies, such as six - step commutation control. The 48V model also supports Field - Oriented Control (FOC). There are multiple feedback methods available, like Hall sensors, Electromotive Force (EMF), etc. The 48V model additionally has a transformer sensor feedback.
4. Convenient Communication
Both support RS485 and CAN communication protocols, which makes it easy to integrate them into systems.
5. Application - specific Design
These products are specifically designed for the motor control of the micro - electronic controlled hydraulic power systems in intelligent downhole tools, making them suitable for specific professional scenarios.
